Brass E1W Cable Gland

Name: Brass E1W Cable Gland
Brand: TURN AND FORGE METAL TEC
Price: 40 INR
Availability: InStock

40 INR/Piece

Get a Price/Quote

Product Details:

Core Number 1 to 4 or as per cable specification
Locking Type Secure compression type with locknut
Diameter Cable entry diameter: 12 to 70 mm (depending on size)
Conductor Shape Round
Operating Temperature -20C to +80C
Impedance Not Applicable (depends on cable used)
Dielectiric Strength Not Applicable to gland (relevant as per cable)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Brass E1W Cable Gland Price And Quantity

Price 40 INR/Piece
Minimum Order Quantity 500 Piece

Packing Packed in sealed polythene with label, then boxed
Sealing Ring Material EPDM or Neoprene Rubber
Accessories Complete with locknut, washer, earth tag if required
Applicable Cables Suitable for steel wire armoured and unarmored cables
Earth Tag Available on request for effective earthing
Thread Type Metric (ISO), BSP, PG, NPT threads available
Operating Environment Suitable for indoor and outdoor, hazardous and non-hazardous locations
Finish Natural, nickel plated or as specified
Ingress Protection Up to IP66/IP67 when installed properly
Standards Compliance Complies with BS 6121, EN 50262

Brass E1W Cable Gland Product Specifications

Features Weatherproof, dustproof, robust design, corrosion resistance, durable construction
Storage Temperature -25C to +85C
Usage & Applications Electrical panels, control cabinets, machinery, marine & hazardous area installations
Install Type Indoor and Outdoor
Application Securing and sealing cables entering electrical equipment; used in industrial, marine, and hazardous environments
Tensile Strength High Tensile Strength, ensures secure cable clamping
Conductor Type Stranded or Solid (as per cable specification)
Connector Color Brass (natural finish or nickel plated)
Weight Varies as per size (approx. 50g to 750g per piece)
Jacket Material PVC, LSZH (Low Smoke Zero Halogen), or as per cable specifications
Material High Grade Brass (IS 319, BS 2874, CZ121 or Equivalent)
Insulation Material PVC or as per cable specification
Product Type Cable Gland
Rated Temperature -20C to +80C
Core Number 1 to 4 or as per cable specification
Length Custom/As per requirement (Cable gland length varies by cable size)
Locking Type Secure compression type with locknut
Diameter Cable entry diameter: 12 to 70 mm (depending on size)
Conductor Shape Round
Operating Temperature -20C to +80C
Impedance Not Applicable (depends on cable used)
Dielectiric Strength Not Applicable to gland (relevant as per cable)
Jacket Color Depends on cable used; Cable gland is metallic color
Conductor Material Copper/Aluminium (as per cable specification)
Armored Material Suitable for Armored (SWA, AWA) and Unarmored cables
Voltage Up to 1000V
Number of Conductor Accommodates single or multi-core cables
Size Available from 16 mm to 90 mm (as per cable size)
Color Natural brass or nickel-plated
Dimension (L*W*H) Varies with size; refer to dimension chart for specific sizes
Core Material Copper/Aluminium
Cable Type Armored (SWA/AWA) & Unarmored cables
Shield Material Not Applicable (Cable Gland itself is unshielded, but compatible with shielded cables)
Insulation Not applicable to gland; depends on cable

Packing Packed in sealed polythene with label, then boxed
Sealing Ring Material EPDM or Neoprene Rubber
Accessories Complete with locknut, washer, earth tag if required
Applicable Cables Suitable for steel wire armoured and unarmored cables
Earth Tag Available on request for effective earthing
Thread Type Metric (ISO), BSP, PG, NPT threads available
Operating Environment Suitable for indoor and outdoor, hazardous and non-hazardous locations
Finish Natural, nickel plated or as specified
Ingress Protection Up to IP66/IP67 when installed properly
Standards Compliance Complies with BS 6121, EN 50262

Brass E1W Cable Gland Trade Information

Payment Terms Cash Advance (CA)
Delivery Time 10 Days
Main Domestic Market All India

Product Description

Unlock phenomenal performance with our Brass E1W Cable Gland, a renowned solution for industrial, marine, and hazardous installations. Select from Metric (ISO), BSP, PG, and NPT threads for wondrous versatility. Compliant with BS 6121 and EN 50262, each robust gland is crafted from high-grade brass (IS 319/BS 2874/CZ121), ensuring superior durability and corrosion resistance. Sale options include natural or nickel-plated finish, secured with premium sealing rings (EPDM/Neoprene). Supplied complete with locknut, washer, and earth tag (upon request), it guarantees up to IP66/IP67 ingress protection for both armored and unarmored cables.

Brass E1W Cable Gland-Use & Application Excellence

Ideal for secure cable entry in electrical panels, control cabinets, and machinery, Brass E1W Cable Glands excel in both indoor and outdoor environments, including hazardous locations. Installation is effortless using a secure compression locknut method, while its weatherproof and dustproof design offers a competitive edge in robustness and durability. The product's adaptable length and high tensile strength ensure safe, long-lasting performance in marine, industrial, or power distribution settings.

Brass E1W Cable Gland-Supply & Sample Assurance

Experience our premium supply capability, supported by a comprehensive inventory and swift shipment across India. Sample availability ensures customers can evaluate quality prior to bulk orders; sample policy involves a nominal charge and prompt shipment. Whether you are a distributor, exporter, manufacturer, or trader, our reliable service provider network guarantees timely delivery and product consistency for every order.

FAQ's of Brass E1W Cable Gland:

Q: How do I select the correct thread type for my Brass E1W Cable Gland installation?

A: To select the correct thread type, refer to your equipment's entry specifications and choose from available Metric (ISO), BSP, PG, or NPT threads. Accurate selection ensures optimal sealing and electrical continuity.

Q: What competitive advantages does the Brass E1W Cable Gland offer?

A: Brass E1W Cable Glands deliver robust corrosion resistance, high tensile strength, and up to IP66/IP67 ingress protection-making them ideal for demanding environments and a wide range of cable types.

Q: Where can Brass E1W Cable Glands be used?

A: These glands are suitable for indoor and outdoor installations in electrical panels, control cabinets, marine environments, and hazardous locations where secure cable sealing is essential.

Q: How is the Brass E1W Cable Gland packaged for shipment?

A: Each gland is packed in sealed polythene with a label and then boxed to ensure damage-free delivery and easy identification during handling and storage.

Q: What is the process for obtaining a sample of the Brass E1W Cable Gland?

A: Customers may request a sample, subject to a nominal charge; samples are shipped promptly to allow quality assessment before placing larger orders.

Q: What are the usage benefits of installing Brass E1W Cable Glands with earth tags?

A: Earth tags enable effective earthing, enhancing safety and electrical performance in hazardous and high-power applications, especially for armored and unarmored cables.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Brass Cable Gland' category

Brass CXT Cable Gland Minimum Order Quantity : 500 Usage & Applications : Electrical enclosures, panel boards, power distribution units, industrial wiring Features : Provides secure and reliable cable retention, corrosion resistant, suitable for armored and unarmored cables, ensures earth continuity, robust mechanical strength, weatherproof Material : Highquality Brass Color : Natural Brass Finish Size : Available from 16 mm to 90 mm (Metric) and corresponding Imperial sizes Rated Temperature : 20C to +90C Product Type : Brass CXT Cable Gland Application : Other, Electrical installations, cable terminations, industrial power distribution, control panels Dimension (L*W*H) : Standard sizes as per specifications; varies with cable size Install Type : Threaded installation Storage Temperature : 20C to +80C Insulation Material : Other, Not applicable (metallic gland) Weight : Varies with size Jacket Material : Other, Not applicable (used with variety of cables) Tensile Strength : High mechanical strength suitable for commercial and industrial environments Connector Color : Brass natural Locking Type : Locknut and Earth tag Diameter : 16 mm to 90 mm Length : Custom as per cable requirement Shield Material : Not applicable (varies with cable) Voltage : Other, Up to 1000V Conductor Material : Other, Not applicable (cable gland only) Operating Temperature : 20C to +90C

Send Inquiry

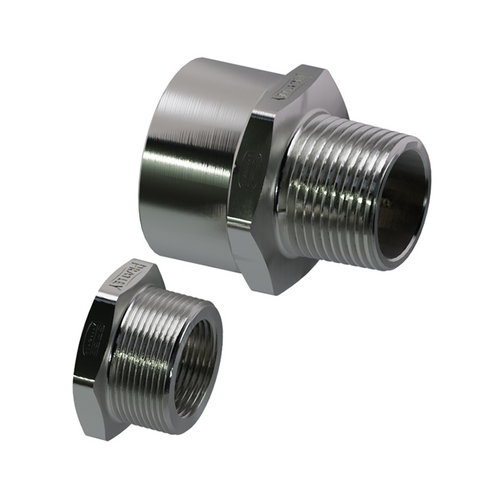

Adaptors and Reducers Minimum Order Quantity : 1000 Usage & Applications : Plumbing, industrial fittings, chemical and water pipelines Features : Corrosion resistant, easy to install, precise fitting, high durability, robust design, leak proof Material : Brass, Stainless Steel, Mild Steel, PVC Color : Silver, Grey Size : 1/2 to 4 (DN15 to DN100) Rated Temperature : 20C to 80C Product Type : Adaptors and Reducers Application : Other, Industrial piping systems, plumbing, gas and liquid transfer, irrigation, cable management Dimension (L*W*H) : Varies as per model Install Type : Threaded/screw type, push fit Storage Temperature : 20C to 70C Insulation Material : Other, PVC/PE/XLPE Weight : Depends on size and material Jacket Material : PVC Tensile Strength : 250 MPa (for metal types) Connector Color : Silver, Grey Locking Type : Threaded/Screw Diameter : 12 mm to 100 mm Length : Customizable as per requirement Voltage : Other, Up to 600V Operating Temperature : 20C to 85C
